THÔNG SỐ KĨ THUẬT
| Range of product |
GoPact MCCB |
| Product or component type |
Circuit breaker |
| Product name |

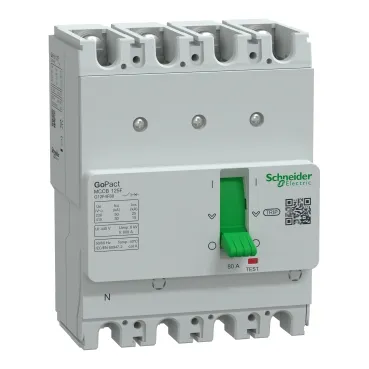

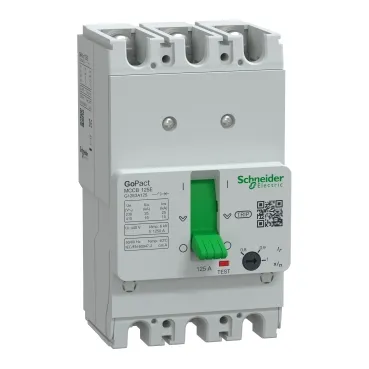

GoPact MCCB 125 |
| Device application |
Distribution |
| Poles description |
4P |
| Protected poles description |
4D |
| Neutral position |
Left |
| [In] rated current |
16 A at 40 °C |
| [Ue] rated operational voltage |
415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation |
Yes conforming to EN/IEC 60947-2 |
| Utilisation category |
Category A |
[Icu] rated ultimate short-circuit breaking capacity
|
10 kA Icu at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Performance level |
T 10 kA 380/415 V AC |
| Trip unit name |
TM-D |
| Trip unit technology |
Thermal-magnetic |
| Trip unit protection functions |
LI |
| Control type |
Toggle |
| Circuit breaker mounting mode |
Fixed |
| [Ui] rated insulation voltage |
440 V AC conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-2 |
[Ics] rated service short-circuit breaking capacity
|
10 kA at 380/415 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA at 220/230 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Mechanical durability |
30000 cycles |
| Electrical durability |
8000 cycles at 415 V In |
| Power dissipation per pole |
18.7 W |
| Mounting support |
Backplate |
Mounting position
|
Horizontal and vertical
Flat on the back |
| Upside connection |
Front |
| Downside connection |
Front |
| Connection terminals |
Screw terminals |
| Connection pitch |
25 mm |
Protection type
|
L : for overload protection (thermal)
I : for short-circuit protection (magnetic) |
| Trip unit rating |
16 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) |
Fixed
|
| [Ir] long-time protection pick-up adjustment range |
1 x In |
| Long-time protection delay adjustment type tr |
Fixed |
| Instantaneous protection pick-up adjustment type Ii |
Fixed |
| [Ii] instantaneous protection pick-up adjustment range |
320 A |
| Neutral protection settings |
1 x Ir (4D) |
| Width (W) |
100 mm |
| Height (H) |
130 mm |
| Depth (D) |
60 mm |
| Net weight |
0.9 kg |
| Colour |
Grey (RAL 7035) |
Standards
|
EN/IEC 60947-1
EN/IEC 60947-2
EN/IEC 60947-2 Annex H |
| Overvoltage category |
III |
| Pollution degree |
3 conforming to IEC 60664-1 |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| Ambient air temperature for operation |
-20…55 °C |
| Ambient air temperature for storage |
-35…85 °C |
Operating altitude
|
0...2000 m without derating
2000...5000 m with derating |
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
12.4 cm |
| Package 1 Width |
11 cm |
| Package 1 Length |
13.9 cm |
| Package 1 Weight |
1187 g |
| Unit Type of Package 2 |
S02 |
| Number of Units in Package 2 |
6 |
| Package 2 Height |
15 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
7.437 kg |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
96 |
| Package 3 Height |
75 cm |
| Package 3 Width |
60 cm |
| Package 3 Length |
80 cm |
| Package 3 Weight |
127.492 kg |
